Fully Automatic Ultrasonic Cleaning Machine – Non-Standard Industrial Multi-Tank System with Touch Screen Control

Product Overview

The Fully Automatic Ultrasonic Cleaning Machine (Model LanJ-60168AD) is a non-standard customized industrial solution designed for large-scale and high-precision parts cleaning. With 8 independent stainless steel tanks, advanced ultrasonic power, and touch screen PLC control, this system provides complete automation from washing to rinsing and drying.

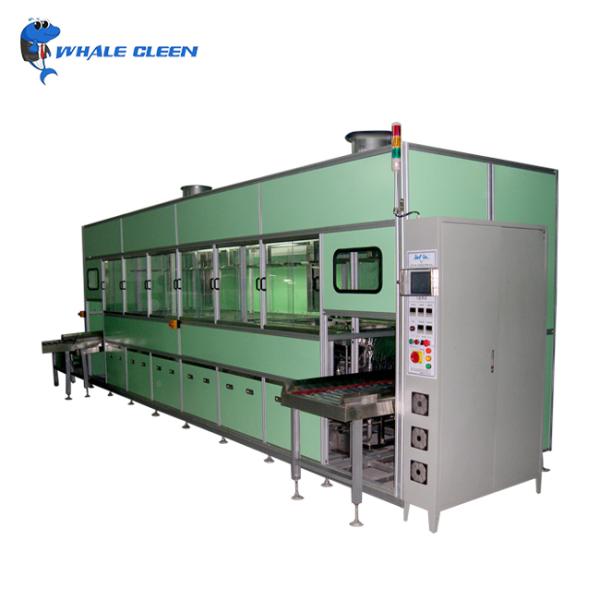

As shown in the picture, the machine adopts a fully enclosed modular design with front conveyor loading/unloading and a centralized control cabinet, ensuring safe operation, easy monitoring, and seamless integration into production lines. Built with SUS316 stainless steel, it is engineered for long service life, stability, and 24/7 industrial operation.

Key Features

• Non-Standard Custom Design: Tailored for industrial applications; tank size, frequency, and cleaning process can be customized.

• 8-Tank Industrial Cleaning Line: Dedicated stages for ultrasonic cleaning, rinsing, and drying to achieve complete cleanliness.

• High-Power Ultrasonic System: 8.4 kW ultrasonic power with 28/40 kHz dual-frequency ensures deep cleaning of blind holes and complex geometries.

• Touch Screen PLC Control: User-friendly HMI for process programming, real-time monitoring, and parameter adjustment.

• Enclosed & Safe Structure: Fully enclosed body with observation windows and exhaust ports for a clean and safe workshop environment.

• Integrated Conveyor Loading/Unloading: Roller conveyors at both ends for smooth material handling and connection to production lines.

• External Generator Box: Guarantees stable ultrasonic performance and easy maintenance.

• Optional Systems: Oil filter system, pneumatic lift, spray rinsing, and customized drying modules available.

Advantages

• Industrial-Grade Performance: Designed for 24/7 heavy-duty operation in demanding environments.

• Superior Cleaning Quality: Dual-frequency ultrasonic cavitation and multi-stage rinsing guarantee uniform, residue-free results.

• Automation Efficiency: Conveyor infeed/outfeed combined with touch screen controls minimize labor while improving throughput.

• Flexible Customization: Configurations can be tailored to automotive, aerospace, medical, and electronic industries.

• Durability & Reliability: SUS316 stainless steel construction ensures chemical resistance and long service life.

• Extended Warranty: 5 years of guaranteed support with 24/7 operational reliability.

Cleaning Process (Typical Workflow)

1. Loading – Parts are fed automatically via the conveyor.

2. Ultrasonic Cleaning – High-power cavitation removes oil, grease, carbon, and particles.

3. Multi-Stage Rinsing – Freshwater or DI rinses ensure removal of chemical residues.

4. Optional Oil Separation / Spray Rinse – For enhanced surface cleanliness.

5. Drying – Hot air drying or optional nitrogen blow-off ensures moisture-free parts.

6. Unloading – Conveyor system transfers clean and dry parts to the next stage.

Application Areas

• Automotive: Engine blocks, cylinder heads, gear parts, injectors

• Aerospace: Turbine housings, precision hydraulic components

• Electronics & Semiconductor: Frames, carriers, housings, PCB assemblies

• Medical Devices: Surgical tools, implants, laboratory equipment

• General Manufacturing: Molds, tooling, and precision industrial assemblies

This ultrasonic cleaning machine is the ideal choice for industries requiring high cleanliness, automation, and efficiency.

Technical Specifications

Why Choose Whale Cleen?

With more than 20 years of experience in ultrasonic cleaning technology, Whale Cleen delivers factory-direct pricing, OEM/ODM customization, and one-stop service from design to commissioning. Our industrial-grade systems are trusted worldwide for precision, reliability, and cost-efficiency.
